SPECIFICATIONS

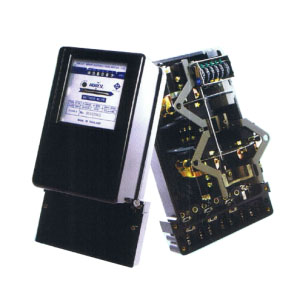

TYPE : DT58
TYPE OF CONNECTION : DIRECT
STANDARD REFERENCE VOLTAGE : 220/380 V
OPTIONAL REFERENCE VOLTAGE : 57.7/100,230/400,240/415 V
RATED FREQUENCY : 50 or 60 Hz.
RATED (MAX) CURRENT : 5(15),15(45),30(100)A
VOLTAGE CIRCUIT CONSUMPTION AT NOMINAL CHARGE : < 1 VA
CURRENT CIRCUIT CONSUMPTION AT NORMINAL CHARGE : < 1 W < 6 VA
STARTING CURRENT : < 0.5% ld
LOWER BEARING : MAGNETIC
ACCURACY CLASS : 2.0
CASE : BAKELITE OR METAL
TERMINAL COVER : EXTENDED OF SHOT
REGISTER : CYCLOMETER
WEIGHT : 4.3 Kg
